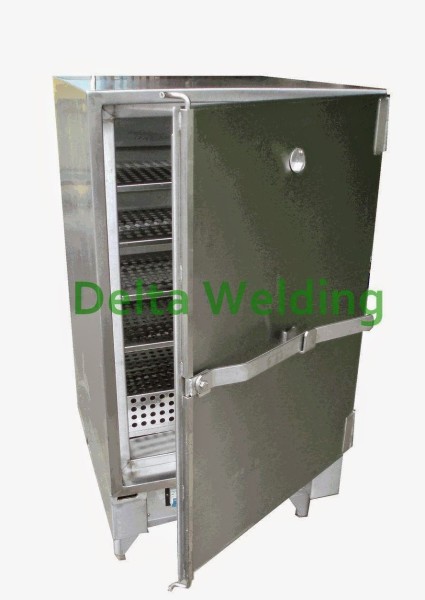

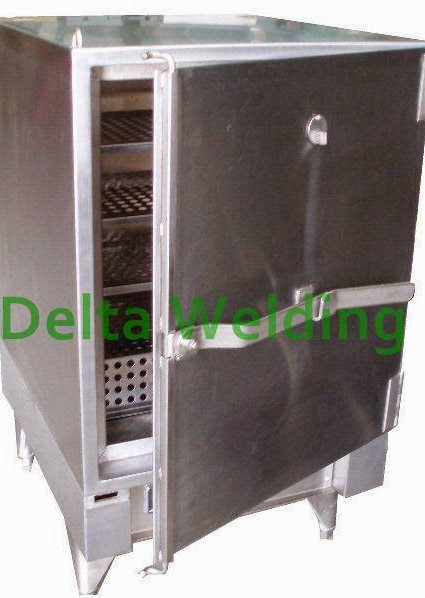

Details:-  Generico ( electrode oven)

-bench type electrode oven

-made in Malaysia

-A high quality holding, rebaking and reconditioning electrode oven with mild steel casing and internal stainless steel shelve and frame to meet requirement for all certification of calibration

specifications:-

1) BE 50 MS- 50kg capacity, electrode sizes up to 457mm. Temperature 50-320. voltage ac 240v. heating element x 2: 1000w. shelve compartments: 4. Insulation rock fibre up to 50mm

2) BE 100 MS- 100kg capacity, electrode sizes up to 457mm. Temperature 50-320. voltage ac 240v. heating element x 2: 1000w. shelve compartments: 6. Insulation rock fibre up to 50mm

3) BE 150 MS 300- 150kg capacity, electrode sizes up to 457mm. Temperature 50-320. voltage ac 240v. heating element x 2: 1000w. shelve compartments: 8. Insulation rock fibre up to 50mm

4) BE 150 MS 400- 150kg capacity, electrode sizes up to 457mm. Temperature 60-400. voltage ac 240v. heating element x 2: 1600w. shelve compartments: 8. Insulation rock fibre up to 50mm

Inside diameter :

310 x 480 x 280 (mm) Model: BE50MS. outside diameter 410 x 480 x 469mm. net weight : 37kg

310 x 480 x 386 (mm) Model: BE100MS. outside diameter 410 x 480 x 567mm. net weight 40kg

310 x 480 x 484 (mm) Model BE150MS. outside diameter 410 x 480 x 665mm. net weight 65kg

Usage: Storing and Restoring electrodes

To store low hydrogen welding rods

Moisture pickup can cause weld cracks as well as under-bead cracking, severe porosity, poor appearance and slag problems.
