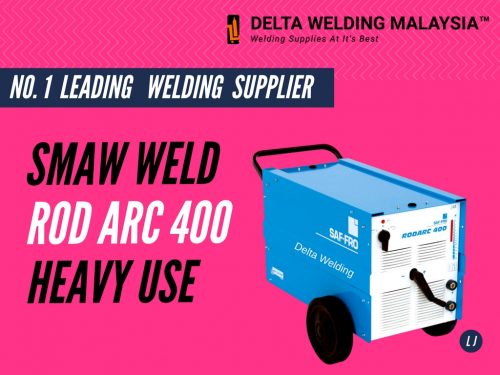

For the 400 series :

Power supply – 50/60 Hz : 400 V 3 Phase -+/-10 %

Primary consumption at I max. 57 A / 33 A

No-load voltage : 70 V

Welding Intensity : 50 – 325 A

Duty cycle 10 min. at 40 °C at 60%  : 250 A

Weldable electrodes: from diameter 1.6 to 6.3 mm

Dimensions (l x w x h) : 560 x 730 x 1 080 mm

Weight:107 kg ( exclude accessories)

Standards : EN 60974-1 / EN 60974-10
