Subject to availability.





Dimensions

Power Source Only

Height	18.5 in. (470 mm)
Length	28.1 in. (712 mm)
Width	12.8 in. (325 mm)

Input Voltage

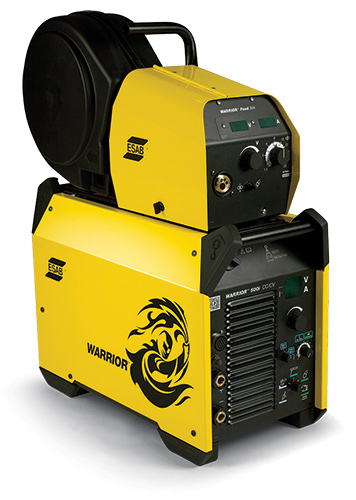

Model	Warrior 500i CV/CC	Warrior Feed 304 Power Supply
Frequency	50/60 Hz	50/60 Hz
Phase	3
Voltage	380/460/575 V	42 V

Power Specifications

GTAW

Current Range(A)

4-500 A

GMAW/SMAW

Current Range(A)

16-500 A

Efficiency at Maximum Current	89 %
Energy Save Mode	30 W
Open Circuit Power W	500 W
Open Circuit Voltage	54 VAC
Power Factor at Maximum Current	0.92
Protection Class	IP 23

Specifications

Operating Temp

-10 to 40 °C (14 to 104 °F)

Weight

Power Source Only

Weight

115 lb (52 kg)

Welding Output

Duty Cycle	60 %
Output Voltage	40 VAC

Duty Cycle	100 %
Output Voltage	36 VAC
